The all-new Jeep E-Bike is a full suspension electric mountain bike geared towards exploring the far corners of the earth like never before.

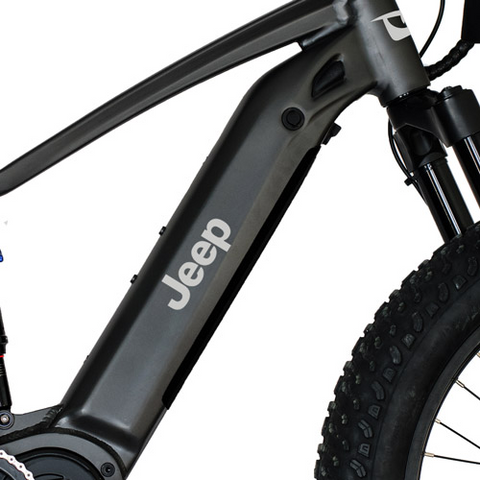

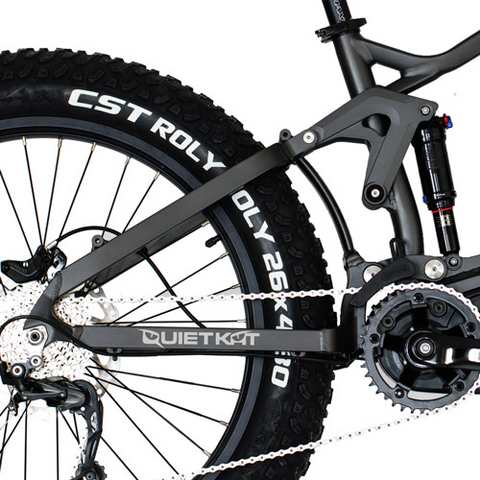

The Fire-Link suspension system is a true four-bar linkage, providing the ultimate traction and capability. The 4 piston hydraulic disc brakes ensure that you're always able to keep control. The hidden, integrated battery sits inside the down tube, for extra protection and safety.
Built on a 26" x 4.8" Fat-Tire platform, the Jeep E-Bike is designed for a wide variety of technical, off road terrain including soft sand and snow, as well as hardpack trails and rocks.
The Jeep e-Bike is available with a 750 Watt motor or 1000W with optional upgrade kit and is a class 2 electric bicycle.
The QuietKat Jeep e-bike has enough power to go anywhere, anytime. Climb the steepest hills and tackle the most difficult terrain with confidence and speed!
Motor: 750W Ultra-Drive Motor or 1000W with optional unrestricted upgrade kit (+$150)
Size: 17" or 19" Frame
Battery: 14.5ah/48V Panasonic
Performance: 160NM of Torque / 1500 Peak Wattage Output
Range: 30 miles unassisted, 50 miles assisted
Brakes: TEKTRO 4-Piston Hydraulic Disc

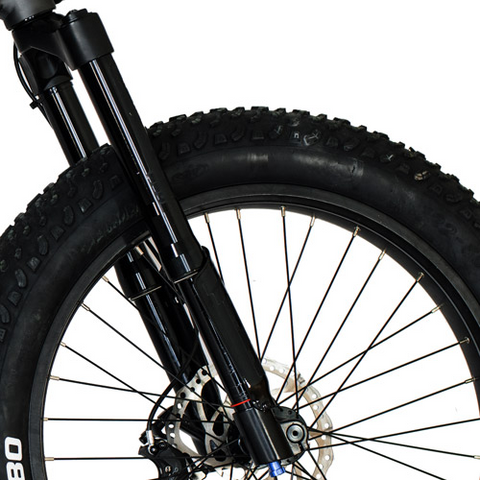

ForK: RST 150mm Inverted Air Suspension
Suspension: QK Custom 150mm Inverted Air Fork / RockShox Monarch RL 150mm
Wheel: CST Roly Poly 26" x 4.8"

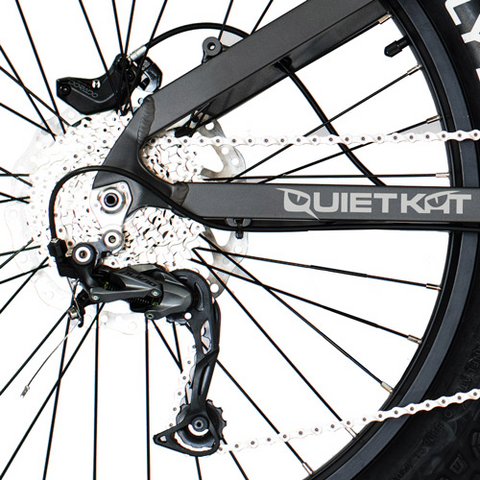

Gearing: 9 Speed Shimano
Color: Jeep Charcoal
Weight 79 lbs
*Range is calculated at 2 miles per amp-hour unassisted, 4 miles per amp-hour assisted
