Description:

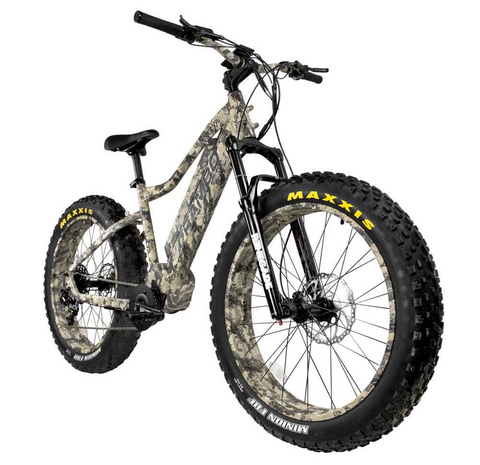

The Rambo Rebel 1000W Xtreme Performance electric fat tire bike is designed by customer request for the Extreme Rider that will only settle for the best. Big game hunting the backwoods in steep grade conditions, trail riding in rough terrain, or cruising down the beach the 1000 XPC has the job covered with high end RST Renegade suspension, a 1000W extreme performance motor, and all the high-end bike components to match. No costs were spared to build the most extreme off-road fat bike. The frame is TrueTimber Viper Western Camo for both concealment and looks. And the Rambo Rebel 1000W True Timber Viper Western Camo Xtreme Performance features a custom-built frame to encase and heighten the motor for increased ground clearance and protection. The Rambo Rebel 1000W TrueTimber Viper Western Camo Xtreme Performance electric fat tire bike won’t disappoint!
Battery:
Rambo’s frame integrated batteries allow the battery sit lower on the bike frame than a standard battery. By placing it lower on the frame it helps keep the weight lower and gives the bike a faster, more responsive ride. Our integrated battery packs use the very best lithium ion batteries produced by Panasonic and Samsung, both leaders in the lithium ion market. Our integrated batteries are designed to be universal and allow you to upgrade to a whopping 21-amp hour battery! The 21-amp hour battery can give you a max distance of 75 miles! …….Not all batteries are equal. In fact, not even close. Many e-bikes that are advertised on the market today at a certain amp hour fall very short. Real life tests show Rambo outperforms again and again! Don’t be fooled for less the than best!
Motor:
Rambo chose to use Bafangs BBSHD powerful mid-drive motor. The BBSHD is the big brother to the BBS02. The BBSHD has a nominal power rating of 1000W and a peak power rating of 1500W. The BBSHD has a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, Giving the rider great explosive force when taking off. Highly strong and efficient, this motor greatly enhances riding joy and the “Rambo Smile” This motor is suitable for riding on terrain such as mountains, sand and for those adrenaline seeking riders who love power.
SPECIFICATIONS:
- MODEL #: 1000 XPC
- WEIGHT: 69 lbs.
- FRAME: Aluminum Alloy 6061
- MOTOR: Bafang 1,000W BBSHD High Torque Mid Drive
- DIGITAL DISPLAY: DP C10.UART
- BATTERY: Panasonic 48V 14.5AH
- FORK: RST Renegade
- REAR CASSETTE: SRAM NX PG-1130 11-42T
- FRONT HUB: KT-M9CF 150mm sealed
- REAR HUB: KT-M9VF Sealed 197mm sealed
- THROTTLE: Thumb throttle
- FRONT BRAKE: Tektro HD-E725 4 Piston Hydraulic 203mm
- REAR BRAKE: Tektro HD-E725 4 Piston Hydraulic 180mm
- CHAIN RING: Rambo custom built 36T Narrow Wide
- TIRE: Maxxis Minion FBF, FBR 26″ x 4.8″
- RIM: Double Wall W/O holes 100mm wide
- PEDAL: Wellgo B807DU
- SADDLE: Selle Royal A027HEO
- HANDLEBAR: PROMAX 770mm
- STEM: PROMAX MA-50
- GRIP: SRAM XX1 100mm / 122mm Lock On
- MAX SPEED: 28 mph without pedaling
- RANGE: 20+ miles without pedaling
- STAND OVER HEIGHT: 31″
- FRAME SIZE: 19″
- WEIGHT CAPACITY: 300 Lbs.
